Brand new from Xtool
We work directly with Xtool so offer full backup and support direct with the manufacturer

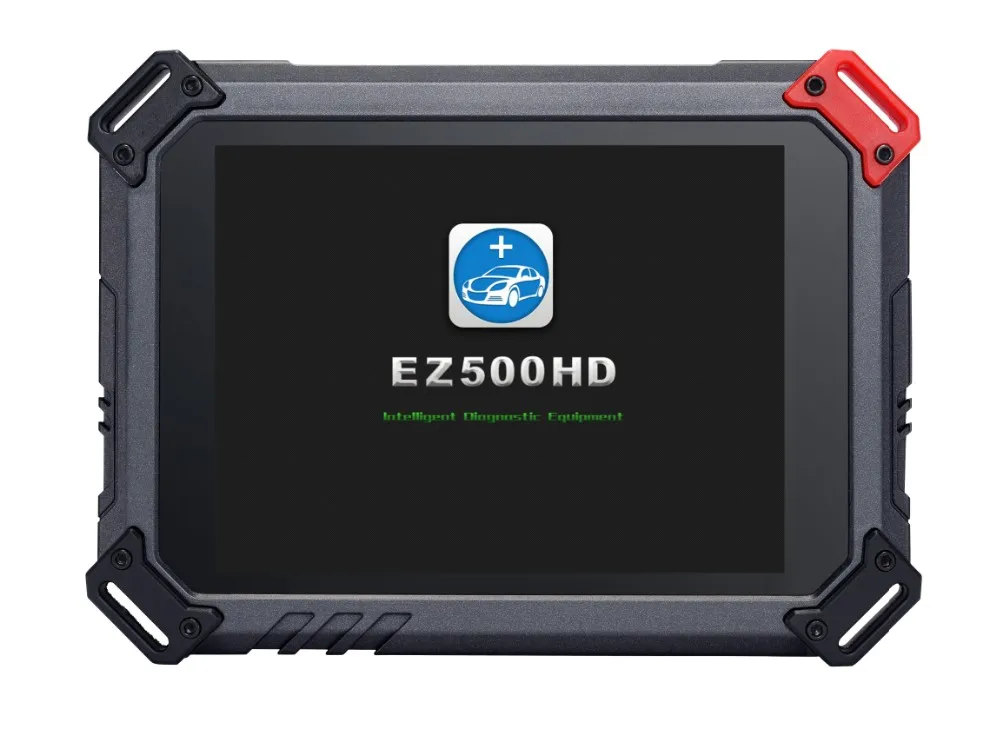

The EZ500 is a high end and new style auto diagnostic device developed by XTOOL based on Android system and internet application. It combines XTOOL’s vast vehicle coverage, strong diagnostic function, many special functions and modern high quality together. EZ500 has the application advantage of internet, which sharing your diagnostic data, picture, video and searching relevant solutions and experience online.
The heavy duty diagnostic XTOOL provides coverage for most USA, Asian and European brands making it a solution for independent service providers looking after many heavy commercial diesel truck and equipment brands.
Features incorporated in the XTOOL EZ500 model include easy registration plus one click for the latest software updates when connected to WIFI, as well as remote access, diagnostic reports in PDF format, record and playback of live data, and a 9.7” multi-touch interactive screen with 1024x768P resolution.
The operating system uses Android 4.4.4 with 2GB RAM, 32GB Flash, CPU Quad-core, 1.6GHz with a 5.0-megapixel camera (rear), AF with the flashlight.
The specifications on this multi-tasking handheld diagnostic system include gravity and light sensors, microphone, dual speakers, 3.5mm headset jack, USB type C and DC charging port, mini-HDMI, and TF card ports. The battery is a 2400mAh Lithium Polymer with an 8-hour battery life and 12-volt power supply.

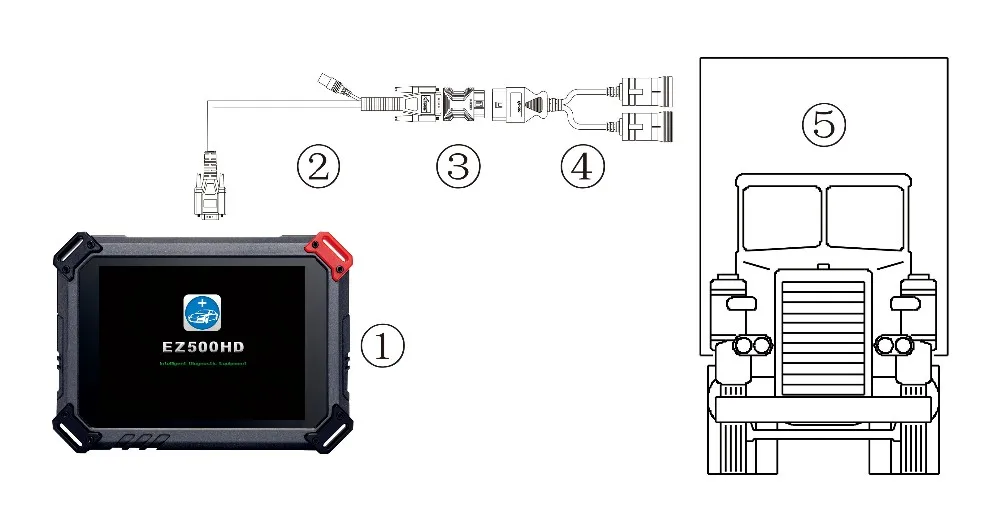

The EZ500 connects directly to the vehicle with primary test cable with all heavy vehicle connectors, OBD2 16 pin connector, OBD6+9 pin connector plus additional connectors supplied for remote access making it ideal for training, demonstration, and remote diagnosis.
Diagnosis printout reports are available in PDF format to show customers exactly the kind of problems rectified on the vehicle.

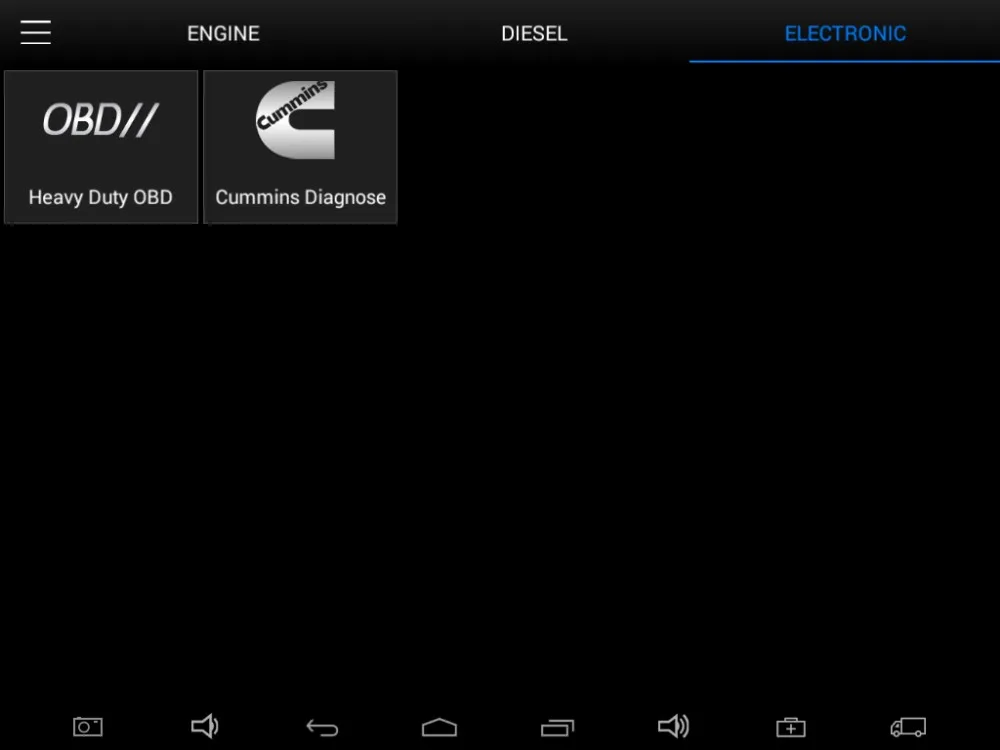

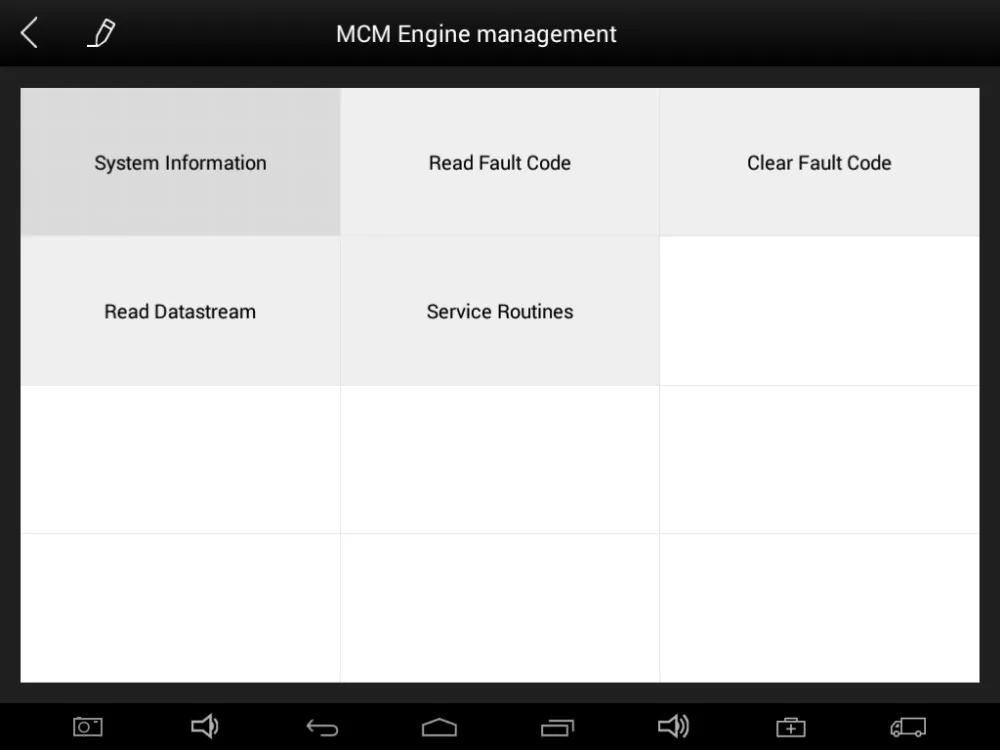

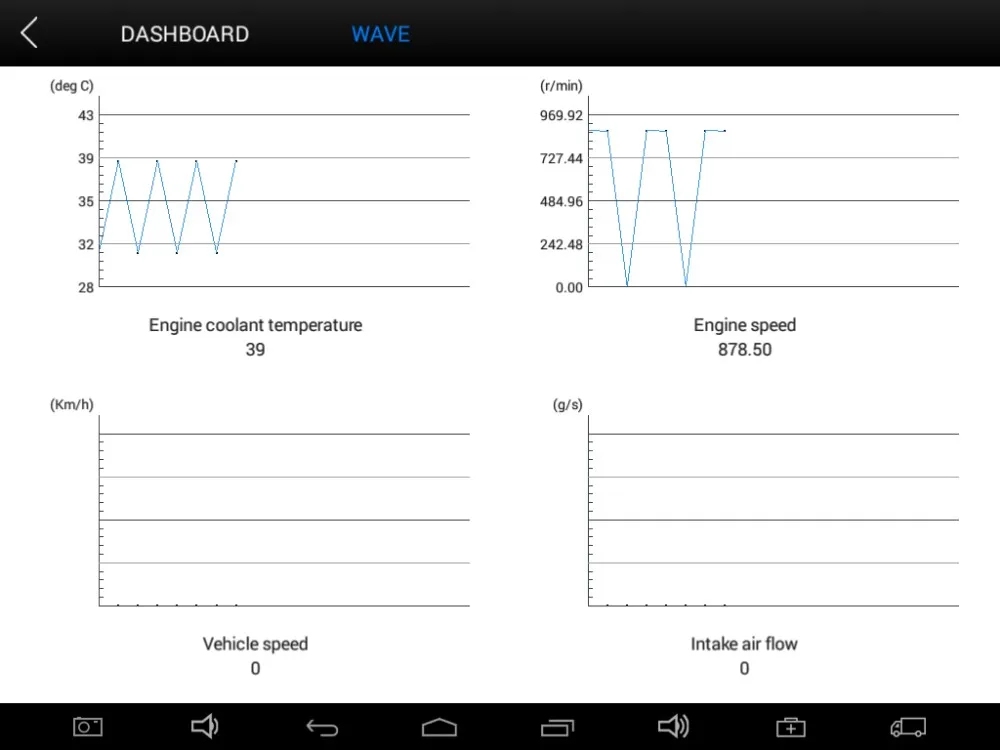

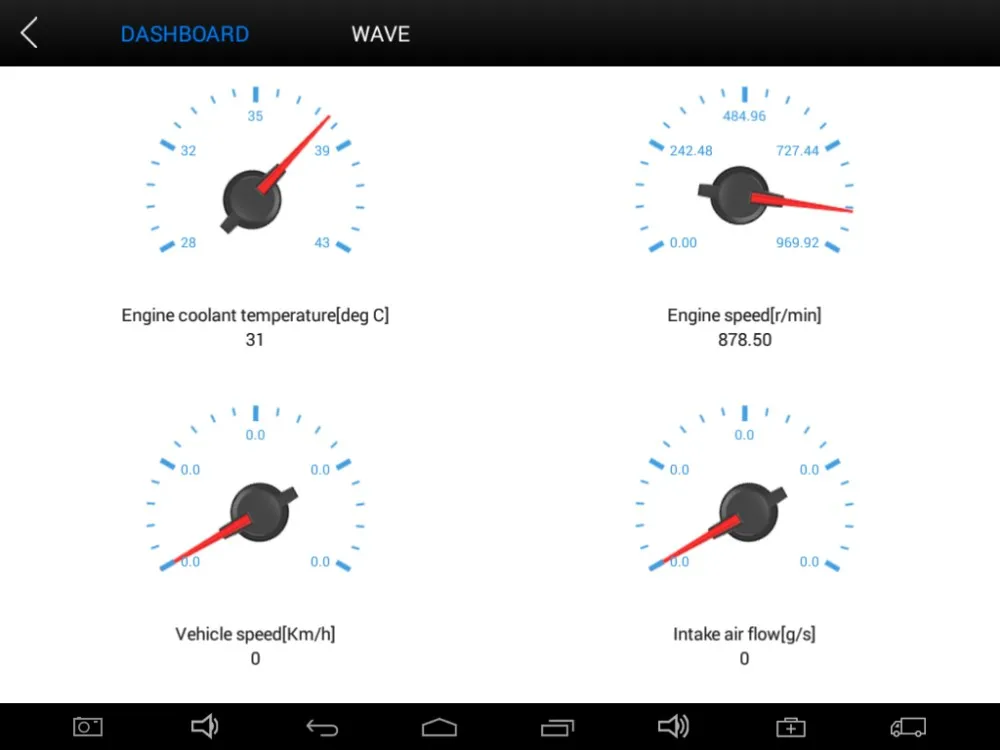

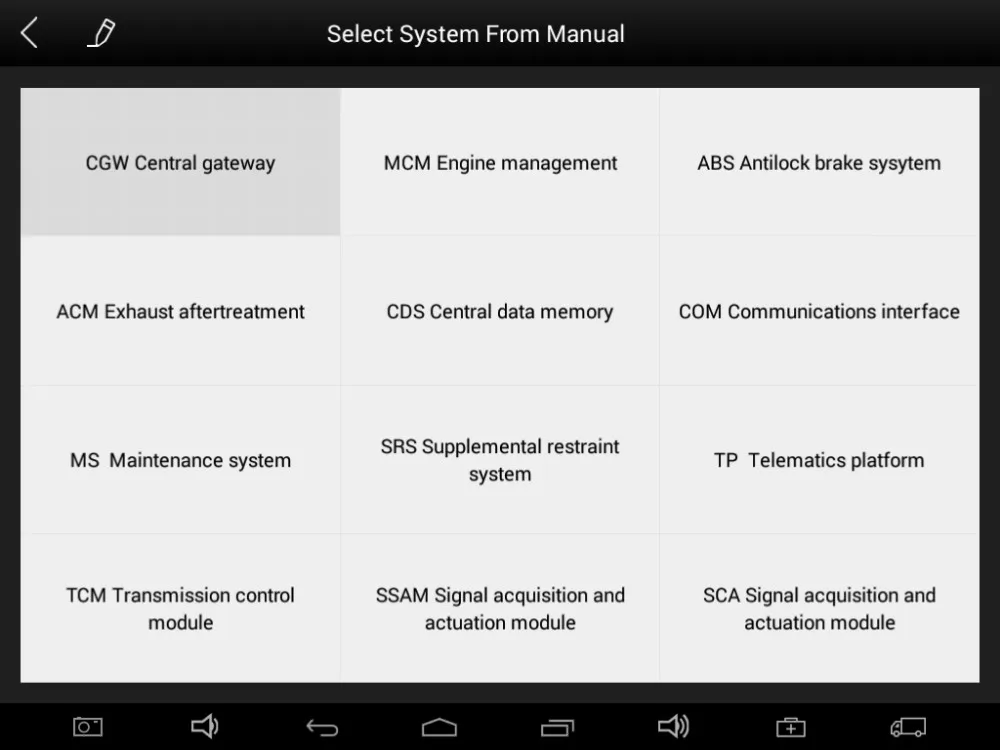

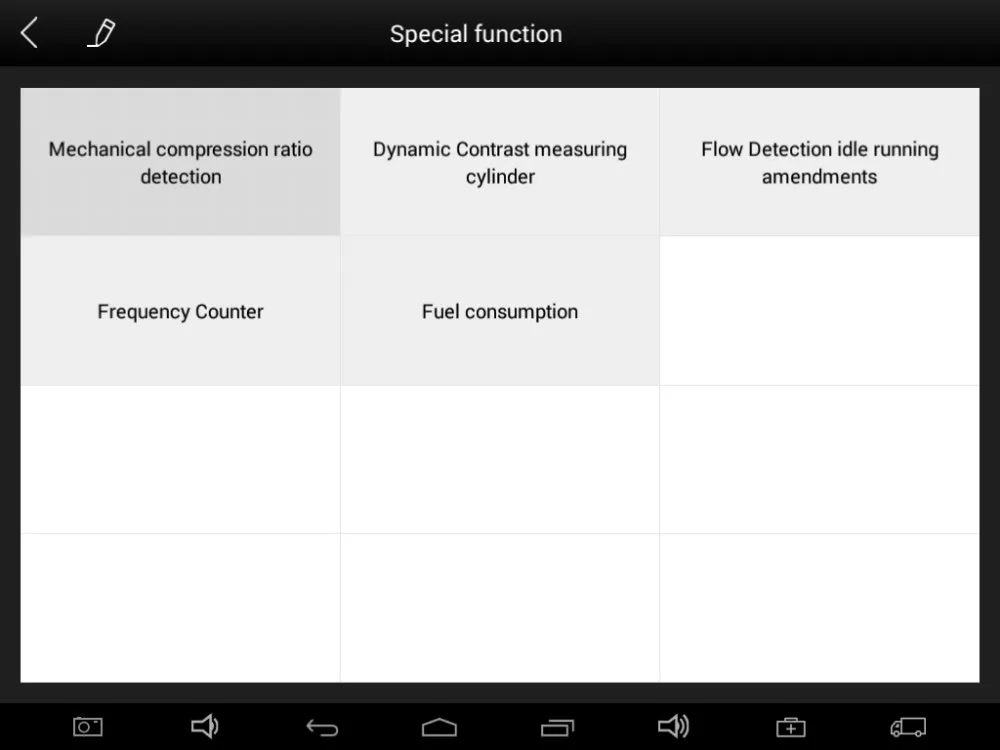

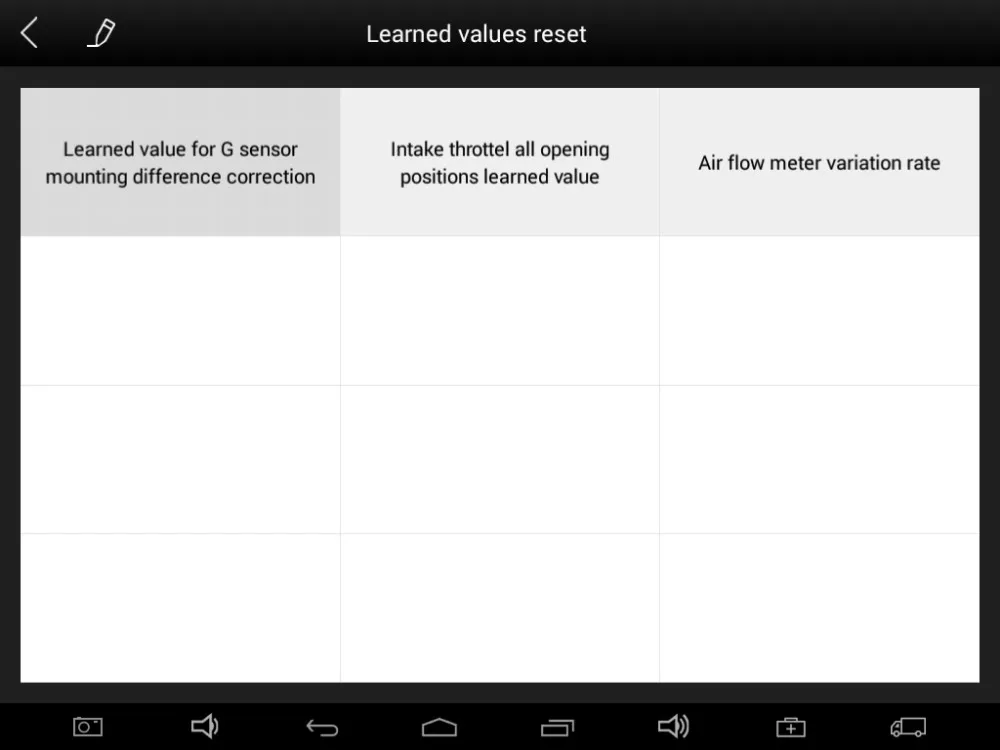

Special functions in this outstanding diagnostic tool include service reset, DPF and ADBlue reset, injector coding, cylinder cut-off, fuel pump calibration, ERG learning, learned valve reset, maximum vehicle speed setting, limited hand throttle plus more.System diagnosis includes engine, ABS, ACM, CDS, COM SRS, as well as essential functions fault code reading, fault code clearance, live data, actuation and actual testing in both wave and dashboard form.
The EZ500 can easily have the software and connectors added for OBDll cars, 4X4, and light commercial vehicles or upgraded to include software and connectors for all vehicles

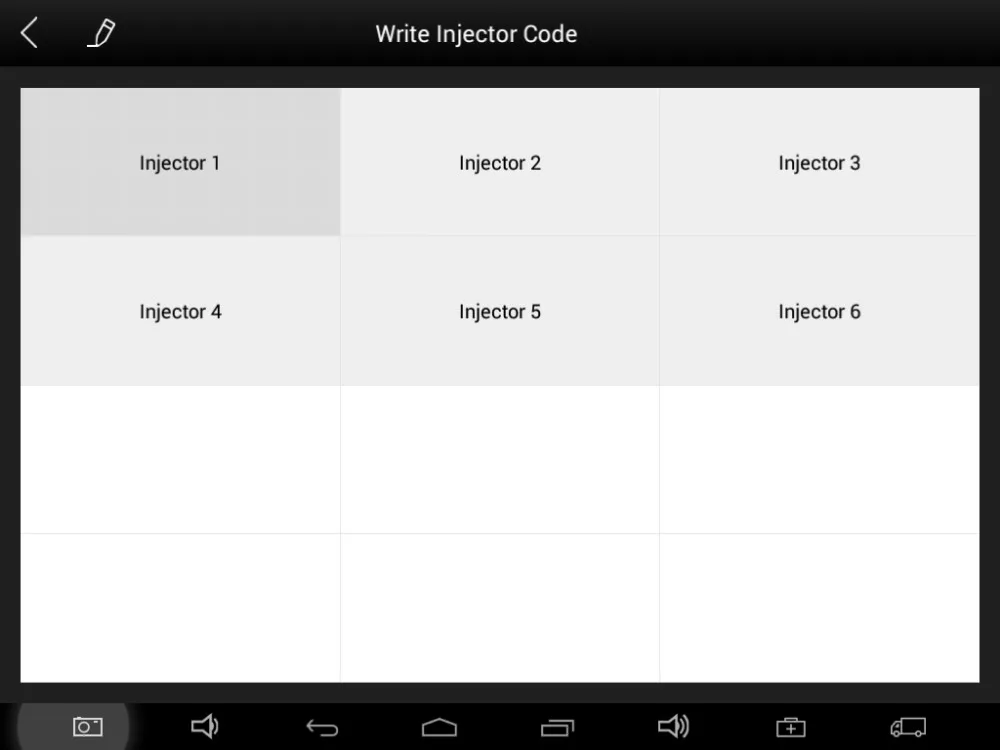

- Injector programming, read & write QR code
- DPF & ADBlue Reset

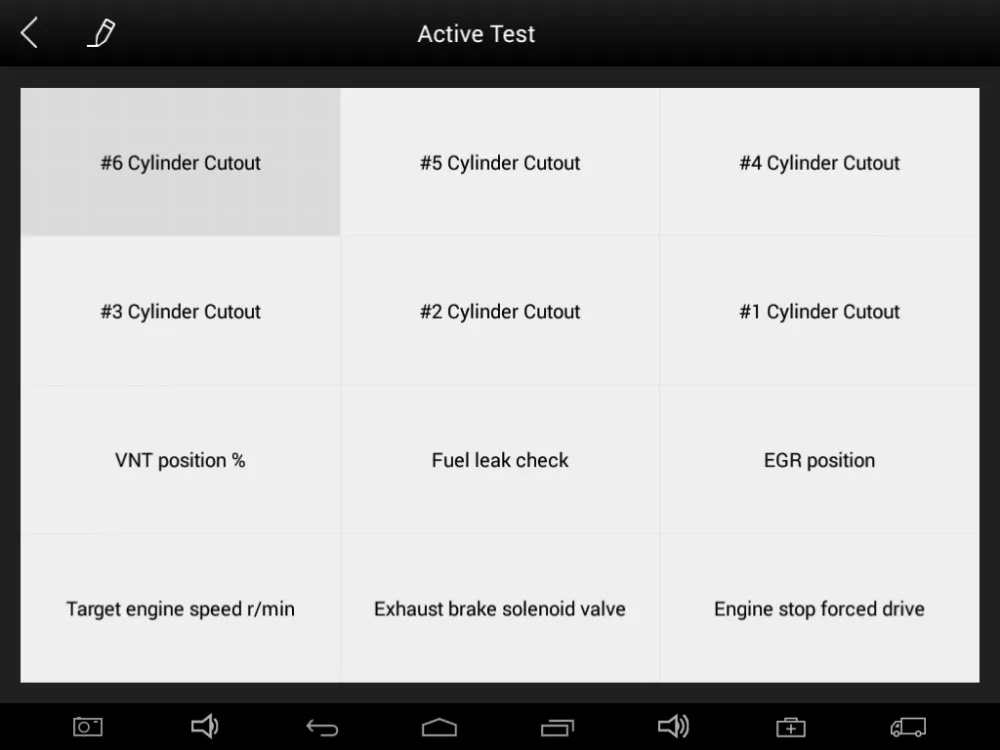

- Cylinder cutoff
- Unlock speed limit, etc
Vehicle Coverage List:
European: VOLVO, SCANIA, MAN, MERCEDES BENZ, MACK, DAF, IVECO, ERF, Astra, Bremach, Renault, etc.
USA: CAT, CUMMINS, DEROIT, Kenworth, Freightliner, Mack, International, Peterbilt, Bendix ABS,
Japanese: ISUZU, HINO, FUSO, HYUNDAI, KIA, UD
More & more vehicle brands and models will be added soon.
Extraordinarily powerful Rockchip 4Coreprocessor
9.7” 1,024x768 LED-backlit glossy Multi Touch capacitive display with IPS technology
Internal reliable and fast 8GB Solid State Drive for better performance
Support TF card up to 16GB
Built-in 5-megapixel rear camera with autofocus and flashlight
Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
USB, audio and auxiliary ports make it easy to connect accessories
The VCI connects to the main unit wirelessly
Open source Android Operating System for fast boot-up and multitasking
Easy and intuitive navigation makes finding what you need simple and fast
Extensive vehicle coverage for most US, Asian and European trucks
Complete capabilities for codes, live data, actuation tests, etc
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

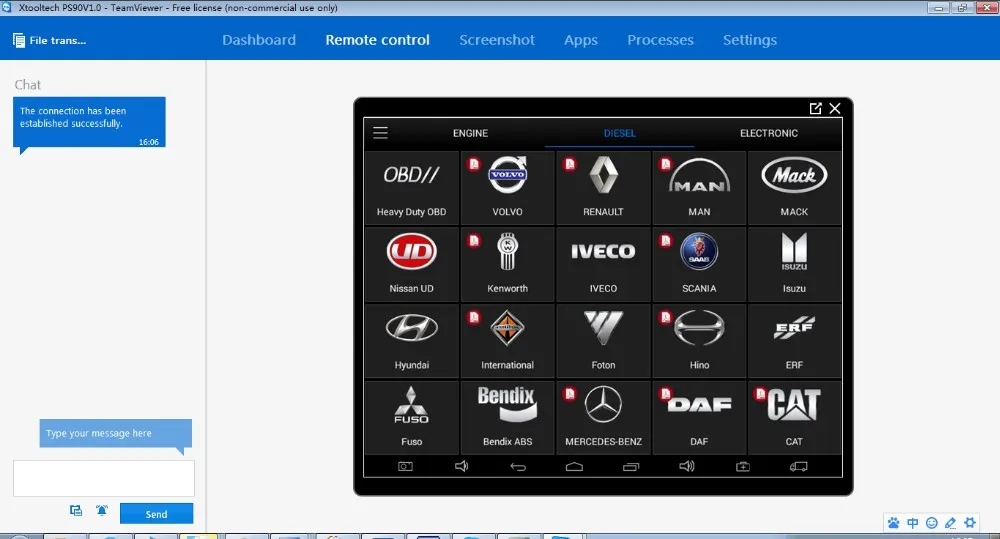

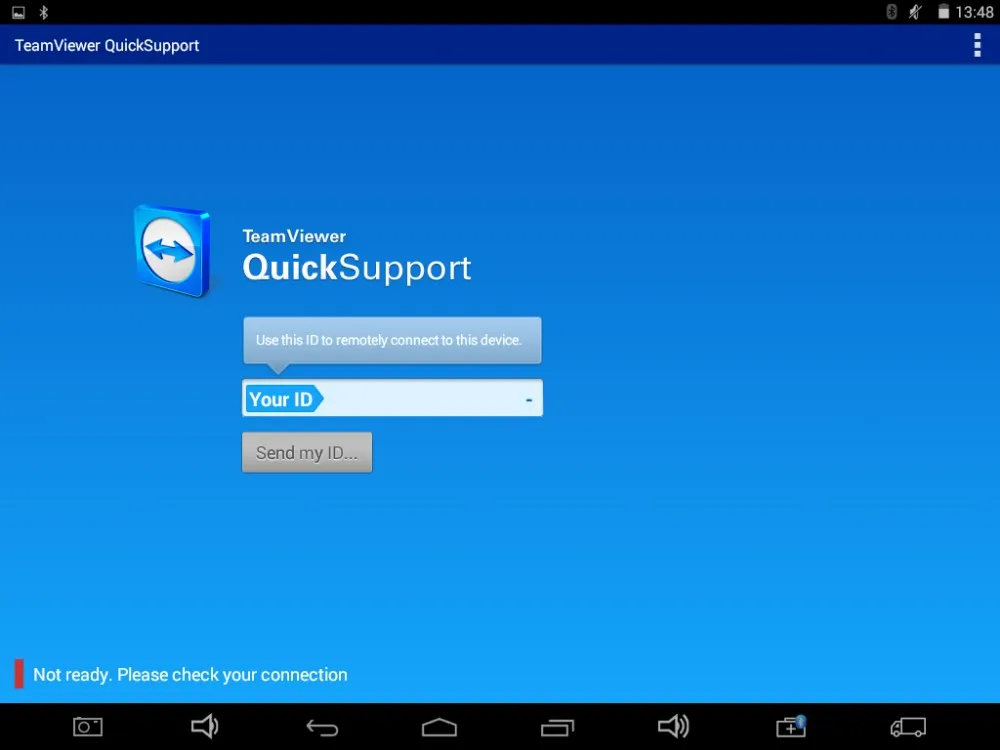

Remote technical support for convenient demonstration, training and increased customer satisfaction

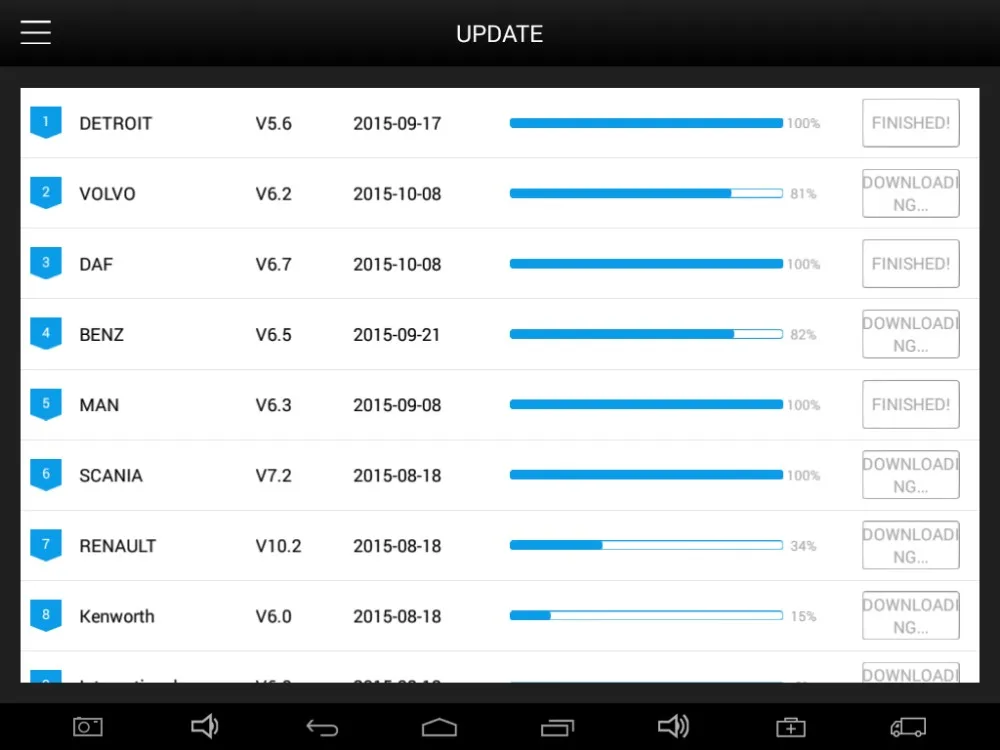

Automatic Wi-Fi updates available in new software releases
- OBD II-16
