Stahlcar BMW Diagnostic Range
Affordable Standalone Full-System Diagnostics for BMW and MINI
The Creator C420 is a dedicated handheld scanner for supported BMW and MINI vehicles. It can access control modules throughout the powertrain, chassis and body systems, read and clear manufacturer-specific fault codes, display live data and carry out common BMW maintenance procedures without requiring a phone or app.
It also works as a generic OBD2 engine and emissions reader on many other vehicle makes, and supports selected older BMWs through the round under-bonnet 20-pin diagnostic connector when the optional adapter is used.
BMW + MINIDedicated Coverage
Full-SystemDrive + Chassis + Body
11+ FunctionsService + Reset Work
2.4-inchColour Display
All-Makes OBD2Engine Functions
LifetimeFree USB Updates
The C420 is aimed at BMW owners who need more than a basic check-engine reader but do not need a professional diagnostic tablet. It is powered directly through the vehicle diagnostic port and uses a built-in colour screen with physical buttons.
Because it contains dedicated BMW software, it can communicate with many control units that generic OBD2 scanners cannot access, including ABS, airbags, transmission, steering, body electronics, climate control and battery-management systems.
Best Suited For
The C420 suits BMW and MINI owners carrying out home maintenance and fault finding on supported vehicles from the late 1990s through the E, F and selected early G chassis generations. It is particularly useful for investigating ABS, airbag, transmission and body-system warning lights, resetting service reminders and registering a replacement battery on vehicles that require it.
It is a strong lower-cost choice for an owner working mainly on BMW or MINI. Customers wanting active component tests, broader coding or stronger late-model coverage should move up to an iCarsoft BMM V3.0 or higher-level tool.
BMW and MINI Full-System Diagnostics
Depending on the vehicle and fitted equipment, accessible modules may include:
-
Powertrain: Petrol or diesel engine management, automatic transmission, transfer case, diesel fuel-pump electronics, hybrid or electric-drive electronics and battery-energy systems.
-
Brakes and Chassis: ABS, DSC stability control, steering-angle sensor, electronic power steering, integrated chassis management, suspension, active cruise control and tyre-pressure monitoring.
-
Safety: SRS airbags, seat-belt and restraint modules, parking assistance and selected driver-assistance systems.
-
Body Electronics: Central body control, lighting, windows, doors, locking, roof, seat modules, mirrors, gateway modules and instrument cluster.
-
Comfort and Information: Climate control, heating, audio, radio, navigation, cameras and other fitted communication or entertainment modules.
-
Charging and Battery: Battery management, charging system, power-control modules and charging-interface modules on supported vehicles.
What Full-System Access Means
On a supported BMW or MINI, the C420 can identify the installed control modules, read their manufacturer-specific fault codes, clear codes after repairs, display control-unit information and show available live data.
This means it can investigate warning lights that a normal engine reader cannot reach. Examples include an ABS wheel-speed fault, an SRS airbag warning, a transmission code, a steering-angle fault or a body-module problem affecting lights, windows or central locking.
The depth of live data varies by module. Engine and transmission systems normally provide more live values than older body modules.
A Fault Code Does Not Automatically Confirm a Failed Part
A code identifies the circuit or condition detected by the control unit. Wiring faults, poor power supply, damaged connectors and mechanical problems can produce the same code as a failed sensor or component.
Fault Codes and Live Data
The tool can read current and stored manufacturer-specific codes, clear warning lights after repairs, show control-unit identification and display supported live values in text or graph form.
Useful checks may include comparing individual wheel speeds during an ABS fault, viewing coolant temperature, monitoring battery voltage, checking steering-angle position, watching throttle position or identifying which restraint module has stored an airbag code.
Clearing a code does not repair the cause. If the fault remains present, the warning light or code will return.
BMW Service and Reset Functions
-
CBS Service Reset: Resets supported Condition Based Servicing items after the required work has been completed.
-
Oil Service Reset: Starts a new engine-oil service interval.
-
Brake-Pad Reset: Resets supported front or rear brake service values after the pads and wear sensor have been replaced.
-
Vehicle Check Reset: Resets supported periodic inspection reminders.
-
Battery Registration: Records that a replacement battery has been fitted on vehicles equipped with battery registration.
-
Electronic Parking Brake: Supports selected rear-brake service procedures.
-
Steering-Angle Reset: Relearns the straight-ahead steering position where supported.
-
DPF Service: Provides selected diesel particulate filter service procedures.
-
Throttle Alignment: Relearns the electronic throttle after cleaning, disconnection or replacement.
-
Microfilter Reset: Resets supported cabin-filter service reminders.
-
Spark-Plug Reset: Resets supported spark-plug maintenance reminders.
-
Adaptation Clearing: Clears selected learned values where the BMW software permits it.
Battery Registration Limits
Many earlier BMW and MINI vehicles do not use battery registration. The manufacturer specifically lists older chassis such as E46, E39, E38, E83, E53, Z3 E36, Z4 E85/E86 and MINI R50/R52/R53 as vehicles where battery registration is not required.
On later vehicles, registration records a replacement battery. Changing to a different battery capacity or chemistry may also require coding, which the C420 cannot perform universally.
Published BMW and MINI Coverage
The manufacturer’s published coverage list includes the following chassis. Available systems and reset functions still vary by exact model, engine, market and year.
-
1 Series: E81, E82, E87, E88, F20, F21 and F52.
-
2 Series: F22, F23, F45, F46 and F87 M2.
-
3 Series: E46, E90, E91, E92, E93, F30, F31, F34, F35 and F80 M3.
-
4 Series: F32, F33, F36, F82 M4 and F83 M4.
-
5 Series: E39, E60, E61, F07 GT, F10, F11, F18, F90 M5, G30, G31 and G38.
-
6 Series: E63, E64, F06, F12, F13 and G32 GT.
-
7 Series: E38, E65, E66, E68, F01, F02, F03, F04, G11 and G12.
-
X Series: X1 E84/F48/F49, X2 F39, X3 E83/F25/G01, X4 F26, X5 E53/E70/F15/F85 and X6 E71/E72/F16/F86.
-
Z Series: Z3 E36 and Z4 E85, E86 and E89.
-
BMW i: i3 I01 and i8 I02.
-
MINI: R50, R52, R53, R55, R56, R57, R58, R59, R60, R61, F54, F55, F56, F57 and F60.
Coverage List Does Not Guarantee Every Function
A listed chassis means the tool has diagnostic coverage for that vehicle family. It does not mean every control module, reset or live-data item is available on every version. Confirm coverage before ordering when one specific procedure is essential.
Older BMW 20-Pin Vehicles
Selected BMWs from approximately 1997 to 2004 use the round 20-pin diagnostic connector under the bonnet. On these vehicles, the interior 16-pin socket may provide only generic engine information or incomplete manufacturer-system access.
The optional BMW 20-pin adapter connects the C420 to the under-bonnet diagnostic socket so it can reach the older BMW systems supported by the vehicle.
The 20-pin adapter is not included with the standard scanner package unless it is specifically added to the order.
Check the Connector Before Ordering for an Older BMW
Vehicles with the round under-bonnet connector normally need diagnosis carried out there for full BMW coverage. Do not rely only on the presence of a 16-pin socket inside the cabin.
Generic OBD2 Functions on Other Makes
The C420 also operates as a standard engine and emissions scanner on compatible non-BMW vehicles.
General OBD2 compatibility normally includes European petrol vehicles from 2001 onward, European diesels from 2004 onward, and many US and Asian vehicles from 1996 onward, provided the vehicle is OBD2 compliant.
- Read generic and manufacturer-specific engine or powertrain codes
- Clear engine codes and switch off the check-engine light after repair
- View pending and permanent codes where supported
- Display fault-code definitions on the tool
- View freeze-frame information
- Display and graph live engine data
- Check emissions-readiness monitor status
- View oxygen-sensor and on-board monitor test results
- Retrieve vehicle information such as VIN, calibration ID and CVN where supported
Other Makes Receive Engine OBD2 Coverage Only
The full-system BMW and MINI software does not extend to other manufacturers. On other makes, the C420 is limited to standard engine and emissions OBD2 functions.
No Active Tests or Advanced Coding
The C420 is intended for codes, live data and listed service procedures.
It does not include general bi-directional component tests, broad convenience-feature coding, key programming or control-module flashing. Choose an iCarsoft BMM V3.0 or higher-level tool when those functions are required.

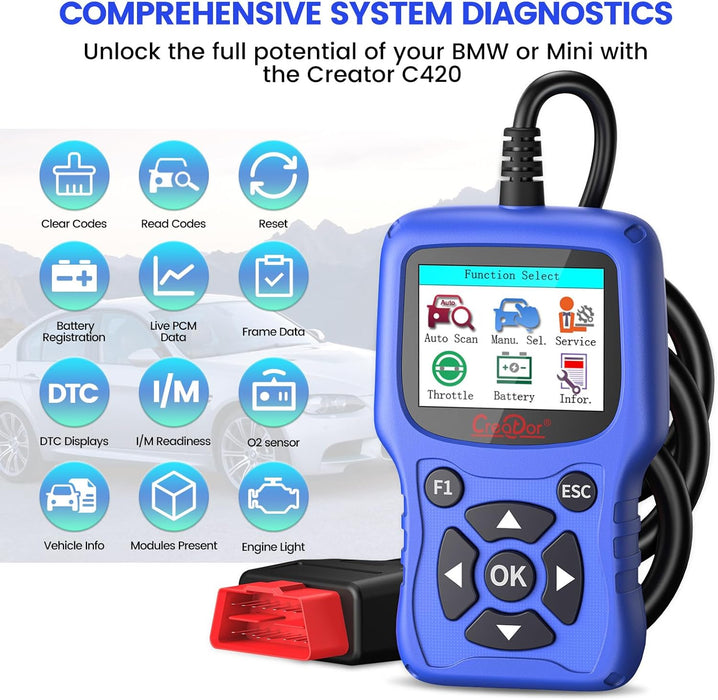

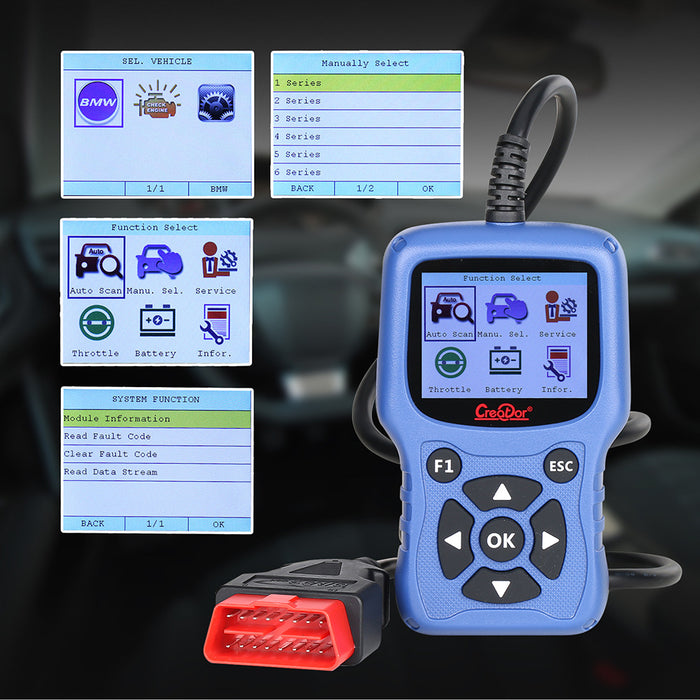

Screen and Standalone Operation
The 2.4-inch colour display shows menus, fault-code definitions and live-data graphs. Physical buttons allow the tool to be used with workshop gloves, and no phone, account or mobile app is required.
The scanner has no internal battery. It powers on when connected to the vehicle and turns off when unplugged.
Software Update Costs
BMW, MINI and generic OBD2 software updates: Free for the life of the tool.
Updates are installed through a compatible Windows computer using the USB connection, memory card and supplied update files. There is no annual update charge.

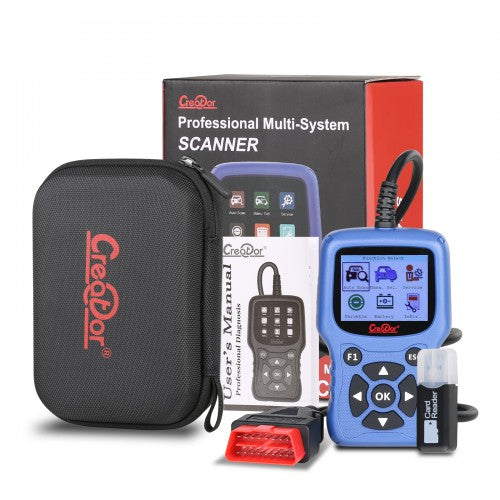

What’s in the Box
- Creator C420 BMW and MINI diagnostic scanner
- Main 16-pin OBD2 diagnostic cable
- USB update cable
- Memory card and card reader
- User information
- Protective storage bag or case as supplied
C420 or iCarsoft BMM V3.0?
Choose the C420 for affordable BMW and MINI full-system diagnosis, common service resets, lifetime updates and support for selected older 20-pin vehicles.
Choose the iCarsoft BMM V3.0 for stronger late-model coverage, active tests, a broader service package and local iCarsoft support.
