DPF Regeneration Explained: When Can a Scan Tool Help?

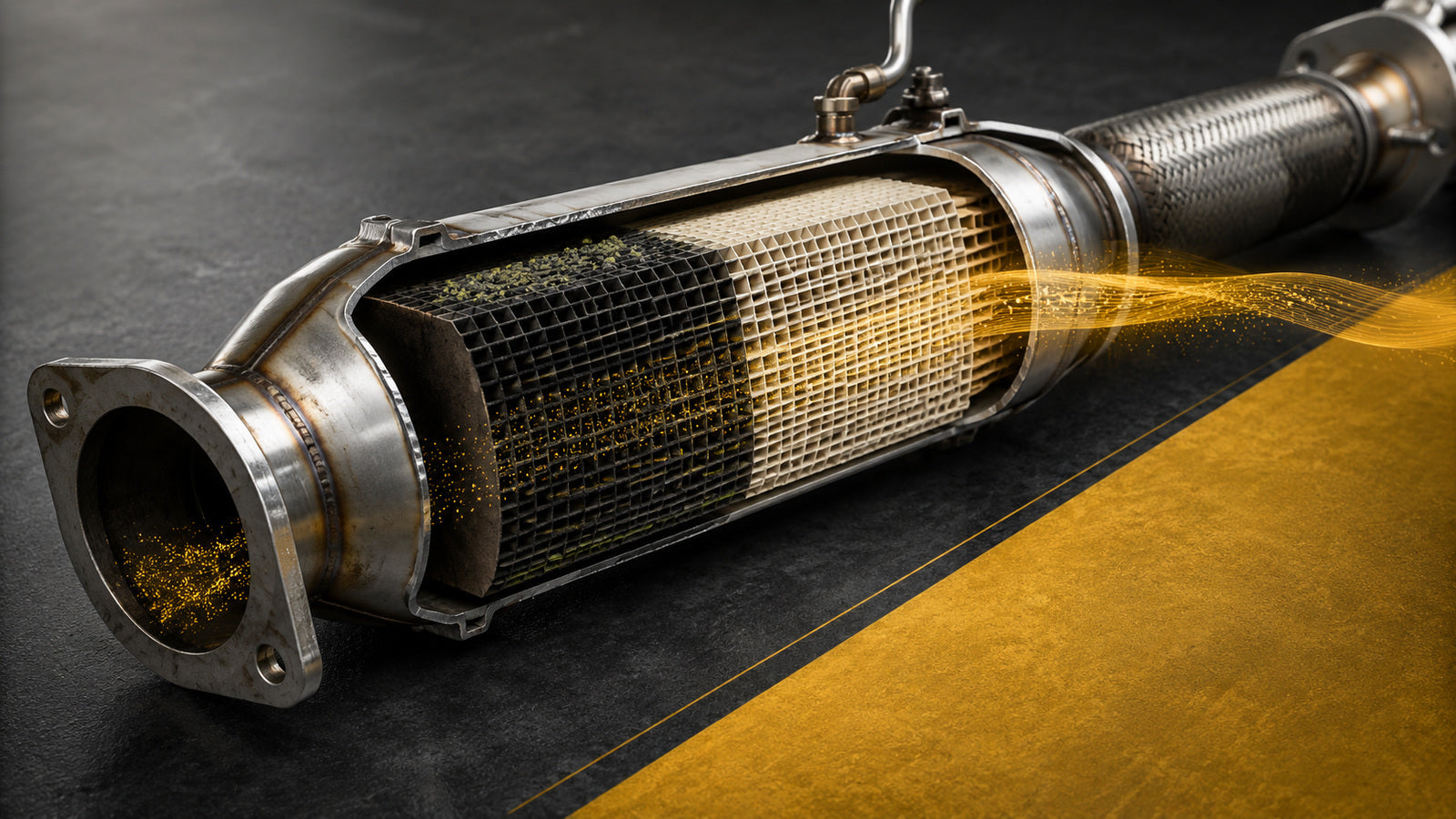

A diesel particulate filter, usually called a DPF, traps soot from the exhaust so it is not released into the air. As soot builds up, the vehicle periodically raises exhaust temperature to burn much of it away. This cleaning process is regeneration.

Problems tend to begin when the vehicle cannot complete regeneration. Frequent short trips, extended idling, sensor faults and other engine problems can all contribute. A warning light may then appear, but pressing a regeneration button without diagnosis is not the right first step.

Passive, active and service regeneration

Passive regeneration happens naturally when exhaust temperature stays high enough during normal driving. Longer open-road trips are more favourable than repeated short urban journeys.

Active regeneration is controlled by the engine management system. When calculated soot loading reaches the required level and operating conditions are suitable, the vehicle raises exhaust temperature to clean the filter. You may notice a higher idle speed, different exhaust note, cooling fans operating or increased fuel consumption while it runs.

Service or forced regeneration is requested using a compatible diagnostic tool, or through a vehicle-specific manual procedure where the manufacturer provides one. It is intended for situations where normal regeneration has not completed and the vehicle still meets the required conditions.

What can a scan tool actually do?

A basic engine code reader may identify a relevant fault code, but a capable full-system or service tool can provide much more useful information. Depending on the vehicle, this may include:

• DPF soot loading or calculated filter load
• Differential pressure across the filter
• Exhaust gas temperature sensor readings
• Distance or time since the last successful regeneration
• Regeneration status and reasons a request has been inhibited
• DPF, EGR, boost, fuel or temperature-related fault codes

On supported vehicles, the tool may also guide the user through a stationary or driving regeneration. The exact function varies by make, model, engine and software version, so seeing “DPF” on a feature list is not enough by itself. Coverage for the exact vehicle should always be confirmed.

What should be checked before a forced regeneration?

The vehicle manufacturer and diagnostic tool instructions take priority. As a general diagnostic sequence, check the stored fault codes, live sensor readings and basic service condition before requesting regeneration.

Autel's current service documentation says the fuel warning light should not be on, no DPF-relevant faults should be stored, the specified engine oil should be used and diesel contamination of the oil should be considered. Ford also requires suitable fluid and fuel levels, stable level ground, outdoor operation and clear space from anything that could burn or melt.

That matters because regeneration creates very high exhaust temperatures. The exhaust can remain hot for several minutes after the process finishes. Never run a stationary regeneration inside a building or close to dry grass, fuel, plastic or other combustible material.

If pressure readings are implausible, a temperature sensor is faulty, the EGR or boost system has a problem, or the engine cannot reach operating temperature, deal with that fault first. Some vehicles will block regeneration until the underlying condition is corrected.

Soot is not the same as ash

Regeneration burns soot. It does not remove all the non-combustible ash that gradually accumulates in the filter. A high-mileage DPF with excessive ash may need professional off-car cleaning or replacement, even if the engine and sensors are working correctly.

This is one reason the data matters. A scan tool helps separate a vehicle that has missed a regeneration from one with a sensor fault, an engine problem or a filter that has reached the limit of what regeneration can achieve.

Choosing a scan tool for DPF work

Look for more than a generic DPF reset claim. A useful tool should read the engine module properly, display relevant live data and support the required regeneration routine on the exact vehicle.

The iCarsoft CR Pro+ is one current all-makes option with full-system diagnostics, live data and DPF service functions. Stahlcar's DPF scan tool collection also includes single-make and workshop-oriented options at different price points.

Because support varies between engines and model years, use the scan tool selector or ask Stahlcar to confirm coverage before buying for a particular regeneration job.

The practical takeaway

A scan tool can be extremely useful when a DPF warning appears, but its first job is diagnosis. Read the codes, check the soot and pressure data, find out why normal regeneration has not completed, and only request a service regeneration when the vehicle and manufacturer procedure allow it.

Technical references: Autel MaxiCOM service documentation, Ford manual regeneration requirements and iCarsoft CR Pro specifications.
