What Is Bidirectional Control on a Scan Tool? Active Tests Explained

A bidirectional scan tool does more than receive information from a vehicle. It can also send commands back to supported control modules, allowing individual components to be operated directly from the scanner.

This is normally called bidirectional control, active testing or an actuation test. It can make fault-finding considerably faster because a component can be tested without waiting for the vehicle to activate it under normal operating conditions.

How is bidirectional control different?

A basic code reader mainly receives information. It may read and clear engine fault codes, display live sensor data and turn off the check-engine light once a problem has been repaired.

A bidirectional tool creates two-way communication. The vehicle sends information to the scan tool, then the scan tool sends a command back to a supported control module. The module attempts to perform that command, and the person carrying out the test observes the result.

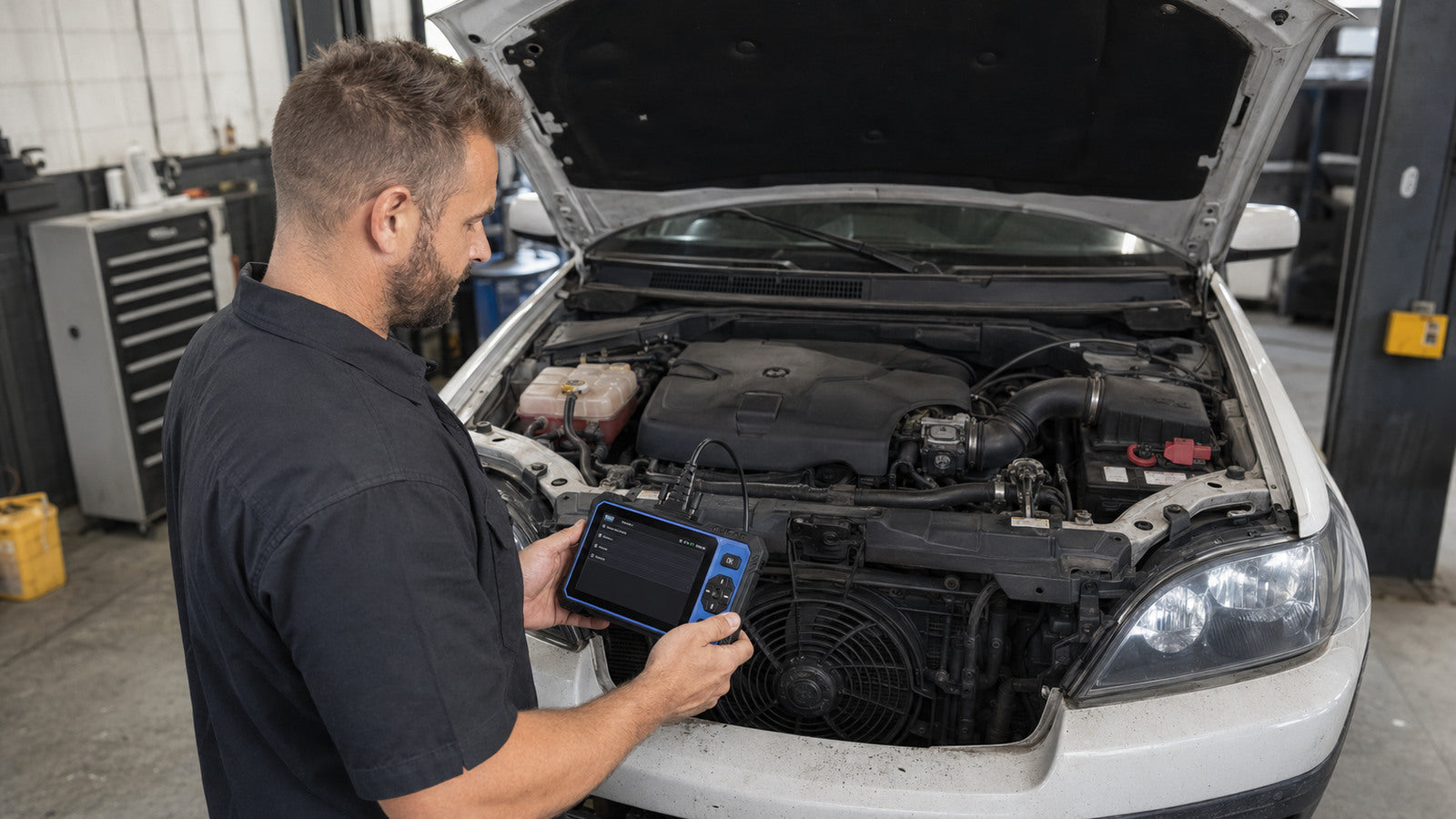

For example, a cooling fan may not be operating when the engine becomes hot. A bidirectional scan tool may allow the fan to be commanded on manually.

If the fan operates during the active test, the fan motor and at least part of its electrical circuit are working. The diagnosis can then move towards temperature sensors, control logic or the conditions required for normal fan operation.

If the fan does not operate, further checks may be needed around the fan, relay, wiring, power supply or control module. The active test does not automatically identify the failed part, but it can narrow the investigation considerably.

Common active tests

Available tests depend on the vehicle and the diagnostic software in the tool. Common examples can include:

• Operating radiator cooling fans
• Switching fuel pumps on and off
• Activating headlights or other exterior lights
• Operating electric windows and door locks
• Cycling an air-conditioning compressor clutch
• Activating an EVAP purge valve
• Testing dashboard warning lights
• Operating supported ABS pump or solenoid functions
• Performing injector cut-off or balance tests
• Activating horns, wipers and washers

Not every vehicle supports every test. Two cars from the same manufacturer may offer different active-test functions because of their model, year, installed modules and software.

A practical example

Suppose an electric window will not operate from its door switch.

A full-system scan can first check the door-control module for fault codes. Live data may then show whether the module recognises the window-switch input. If the tool also supports active tests, it may be possible to command the window motor directly.

If the window moves during the test, the motor and its main wiring are likely capable of working. Attention can then shift towards the switch, its input signal or the control logic.

If the window still does not move, the motor, power supply, wiring or door module may need further testing. This is where bidirectional control becomes genuinely useful. Instead of relying only on a fault code, the tool helps divide the system into smaller testable sections.

Is an active test the same as a service function?

No. These features are related, but they are not the same.

An active test temporarily commands a component to operate. A service function carries out a particular maintenance procedure. Service functions can include electronic parking-brake service mode, battery registration, oil-service reset, steering-angle calibration, DPF regeneration, ABS bleeding and throttle relearning.

A tool may offer a large number of service functions without providing full bidirectional control. Likewise, a tool with active tests may not support every service procedure on every vehicle. It is important to check the required function rather than relying only on the total number advertised.

Is it the same as coding or programming?

Bidirectional control is also different from coding and programming.

Active testing sends a temporary command, such as switching on a fan. Coding changes a supported vehicle setting or configuration. Programming generally involves installing or replacing control-module software.

A scanner described as bidirectional is not automatically capable of ECU programming, key programming or every type of module coding. These terms are sometimes grouped together in product advertising, but they describe different capabilities.

Who benefits from a bidirectional scan tool?

Active tests are particularly useful for home mechanics carrying out more involved fault-finding, workshops wanting to reduce diagnostic time, mobile mechanics who need broad testing capability, and anyone diagnosing electrical or module-controlled components.

Someone who only wants to read an occasional check-engine code may not need bidirectional control. A straightforward OBD2 code reader could be enough.

For ABS, airbag, transmission and body-system faults, start with a full-system tool. If component testing is also required, confirm that the tool includes suitable active-test coverage.

Choosing a bidirectional scan tool

There is no single scanner that performs every possible active test on every vehicle. Before choosing a tool, consider the vehicle makes and model years involved, which control systems need to be accessed, the exact active tests or service functions required, and whether a handheld, touchscreen or phone-based tool is preferred.

Compact options such as the XTOOL A30M provide phone-based full-system diagnostics and active tests. The standalone MUCAR 682 combines full-system access and active testing in a dedicated handheld unit. More options are available in Stahlcar's all-makes scan-tool range.

Coverage varies by make, model, year and control system. If one particular test is essential, check that exact function rather than assuming every bidirectional tool will provide it.

The bottom line

Bidirectional control turns a scan tool from a device that only reports information into one that can actively assist with testing.

It cannot replace proper mechanical checks, wiring tests or an understanding of how the system works. What it can do is make the diagnostic process faster and more focused by showing whether a supported component responds when directly commanded.
