Why Won’t My Scan Tool Connect to My Car?

A scan tool that says “linking error”, “unable to communicate” or “no vehicle found” is not automatically faulty. The tool, vehicle and control module all need the right power, connection and communication conditions at the same time.

The quickest way to narrow the problem is to separate it into two categories: the tool does not power up at all, or the tool powers up but cannot talk to the vehicle. Those two symptoms point in different directions.

1. Does the scan tool power up?

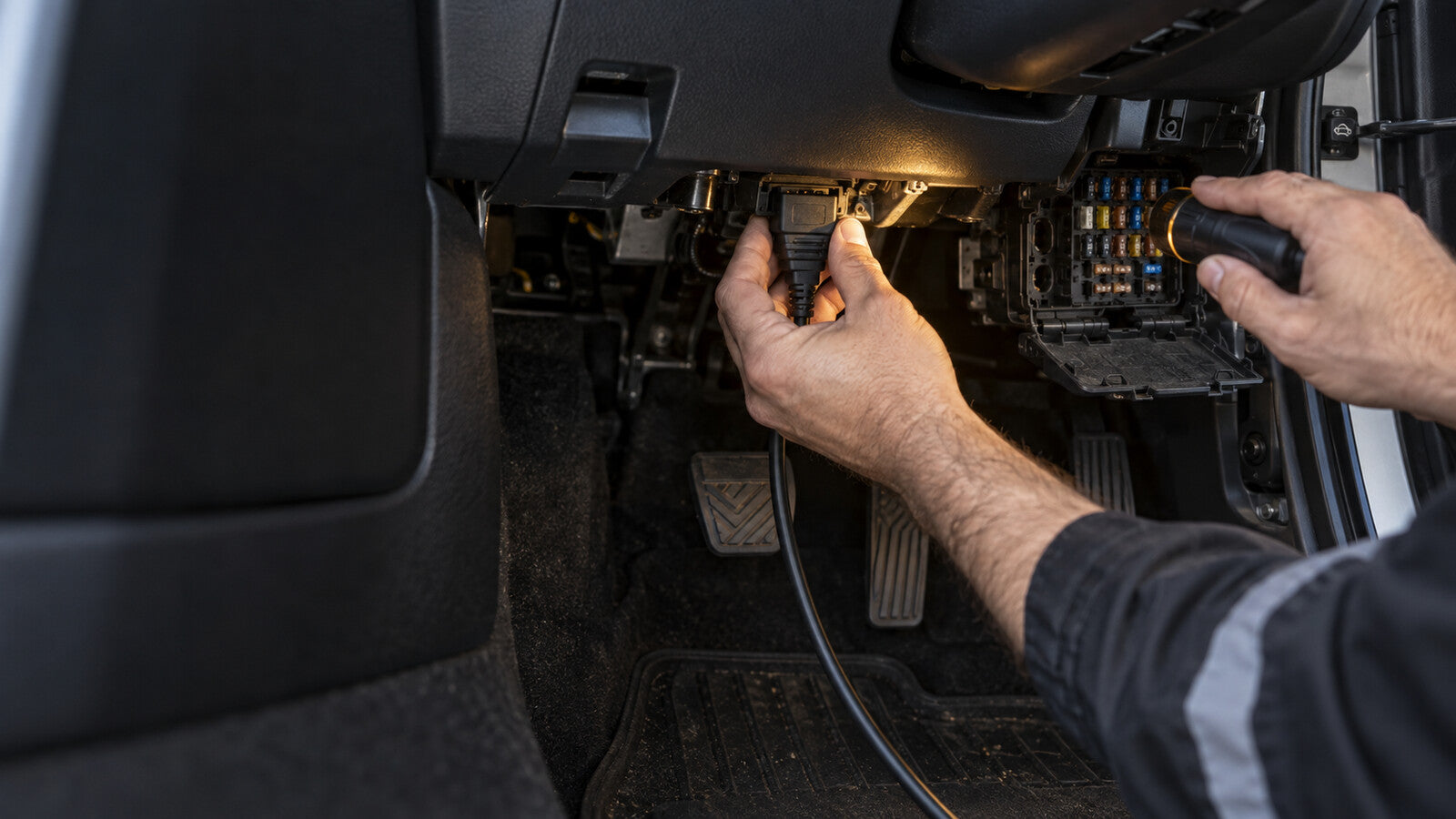

Many handheld scanners and wireless diagnostic interfaces receive power through the vehicle’s diagnostic socket. If there are no lights, no screen and no sign of life, start with the physical connection.

• Push the plug fully into the diagnostic socket.
• Check that the socket is secure rather than being pushed back behind the trim.
• Look for bent, dirty or damaged connector pins.
• Check that the vehicle battery is not flat or seriously discharged.
• Try the tool on another known-compatible vehicle if one is available.

A blown vehicle fuse can also remove power from the diagnostic socket. On some vehicles the socket shares a circuit with another accessory, but fuse arrangements vary. Use the owner’s manual or correct vehicle wiring information to identify the circuit. Replace a failed fuse only with the specified rating. If it blows again, stop and investigate the electrical fault rather than fitting a larger fuse.

2. Is the ignition in the correct position?

For most diagnostic sessions, the ignition needs to be on even if the engine is not running. On a push-button vehicle, pressing the button without the brake or clutch may be required to reach the full ignition-on mode. A brief accessory mode may power the socket but leave some control modules asleep.

Autel’s official troubleshooting instructions recommend checking that the ignition is on, confirming the plug is secure, then switching the ignition off for about ten seconds before trying again. That simple restart can wake modules and reset a stalled communication attempt.

3. Is the vehicle actually OBD2 compliant?

A 16-pin socket does not always guarantee that every scan tool will communicate with every system. Older vehicles, some imports and vehicles built around a market transition can use the familiar connector while offering limited or non-standard diagnostic support.

Generic OBD2 readers mainly communicate with the emissions-related engine system. Access to ABS, airbag, transmission, body and service functions requires manufacturer-specific software and suitable vehicle coverage. This distinction matters in New Zealand because the fleet includes NZ-new vehicles, Japanese imports and older models from several markets.

If you are buying a simple engine reader such as the Stahlcar ST400, confirm OBD2 compliance first. If you need other systems, use an all-system tool with verified support for the exact make, model, year and engine.

4. Has the correct vehicle and module been selected?

Automatic VIN detection is convenient, but it is not the same as basic communication. A tool may fail to read the VIN automatically and still work normally when the vehicle is selected by make, model, year and engine.

Try manual vehicle selection before deciding the tool cannot connect. If only one system is failing, run a full vehicle scan and compare the result. Communication with the engine but not the ABS module can indicate a coverage, selection, module-power or vehicle-network issue rather than a problem with the whole scan tool.

For more detail, read Stahlcar’s guide to why Auto-VIN does not always work.

5. For Bluetooth tools, check both connections

An app-based tool has two separate links. The adapter must communicate with the vehicle, and the phone or tablet must communicate with the adapter. A Bluetooth pairing problem can therefore look like a vehicle problem.

1. Confirm the adapter powers up when connected to the car.
2. Use the correct app for that product.
3. Allow the Bluetooth, nearby-device or location permissions requested by the app.
4. Make sure another phone or app is not already connected to the adapter.
5. Select the correct adapter type inside the app, then reconnect.

Some Bluetooth Low Energy products connect from inside their app rather than through the phone’s normal Bluetooth settings. Follow the product instructions instead of repeatedly pairing and unpairing at system level. The MUCAR BT200, for example, is an app-based all-system tool, while the ST400 is a basic engine-focused adapter. They use different software and provide different access.

6. Do not overlook battery voltage, cables and adaptors

Low vehicle voltage can cause modules to shut down, restart or respond inconsistently. Charge and test a weak battery before a long diagnostic session. On a battery-supported tablet, also make sure the tablet and wireless interface are charged and connected to each other.

If an extension lead or an older-vehicle adaptor is fitted, remove it and test the main tool directly where possible. A poor adaptor, damaged cable or loose connection can interrupt power or data. Older non-OBD2 vehicles may require both a make-specific adaptor and suitable software, not just a plug that physically fits.

When should you stop troubleshooting?

Stop if the diagnostic socket is damaged, a fuse repeatedly fails, wiring becomes hot, there is visible corrosion, or multiple known-good tools cannot communicate. Those signs need proper electrical diagnosis. Do not bridge pins, probe the socket at random or increase a fuse rating.

If the tool connects to the engine but not to one particular module, save the scan result and any communication fault codes. That information can help separate a coverage issue from a failed module, missing power supply or network fault.

The practical takeaway

Start with the symptom. No power means checking the plug, socket, battery and correct fuse information. Power but no communication means checking ignition mode, OBD2 compliance, vehicle selection, app setup and module access. Test one change at a time, because that is much more useful than clearing settings and swapping parts at random.

Technical references: Autel AL539B troubleshooting guidance, Autel MaxiCOM MK908 II manual and iCarsoft OBD overview.
