Stahlcar Land Rover & Jaguar Diagnostic Range
Full-System JLR Diagnostics with Active Testing
The iCarsoft LR V3.0 is a dedicated button-operated diagnostic tool for Jaguar and Land Rover vehicles. It adds bi-directional active tests, CAN-FD support and 36 service functions to the full-system diagnostic access found in the LR V2.0.
It is the practical middle option for owners, independent workshops and mobile mechanics who need more than routine resets but do not require the touchscreen hardware and WiFi updating of the LR V4.0.
4-inchColour Display
JLRDedicated Software
Full-SystemVehicle Diagnostics
Active TestsBi-Directional Control
36Service Functions
LifetimeFree PC Updates
The LR V3.0 is designed specifically around Jaguar and Land Rover electronics, including Range Rover models. It can scan supported control modules throughout the vehicle, read and clear fault codes, display live data and freeze-frame information, identify compatible vehicles through AutoVIN and save diagnostic reports.
Its main advantage over the LR V2.0 is the addition of active tests and the expanded high-level service package. This provides more useful workshop capability for diagnosing suspension, braking, body, driveline and electrical faults rather than simply reading stored codes.
Best Suited For
The LR V3.0 is best suited to Jaguar and Land Rover owners, specialist home mechanics and independent workshops that want deeper fault finding and service capability in a compact handheld.
It is useful across Range Rover, Discovery, Defender, Freelander and Jaguar passenger vehicles where access to systems beyond the engine is required.
Why Choose the LR V3.0?
The LR V3.0 offers the strongest button-operated option in the dedicated JLR range. It adds active testing and a much wider service package while remaining smaller, simpler and lower priced than the LR V4.0 touchscreen model.
It is a good fit for users who value tactile controls and do not mind updating through a Windows computer and TF card reader.

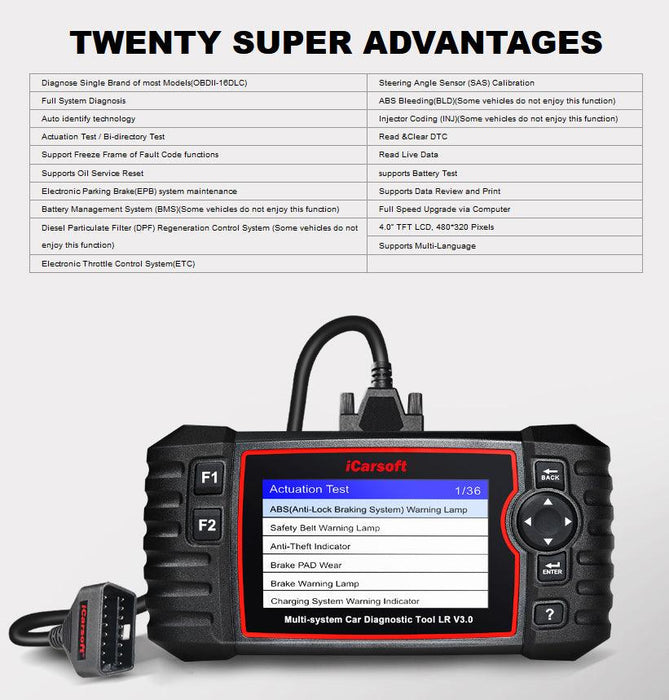

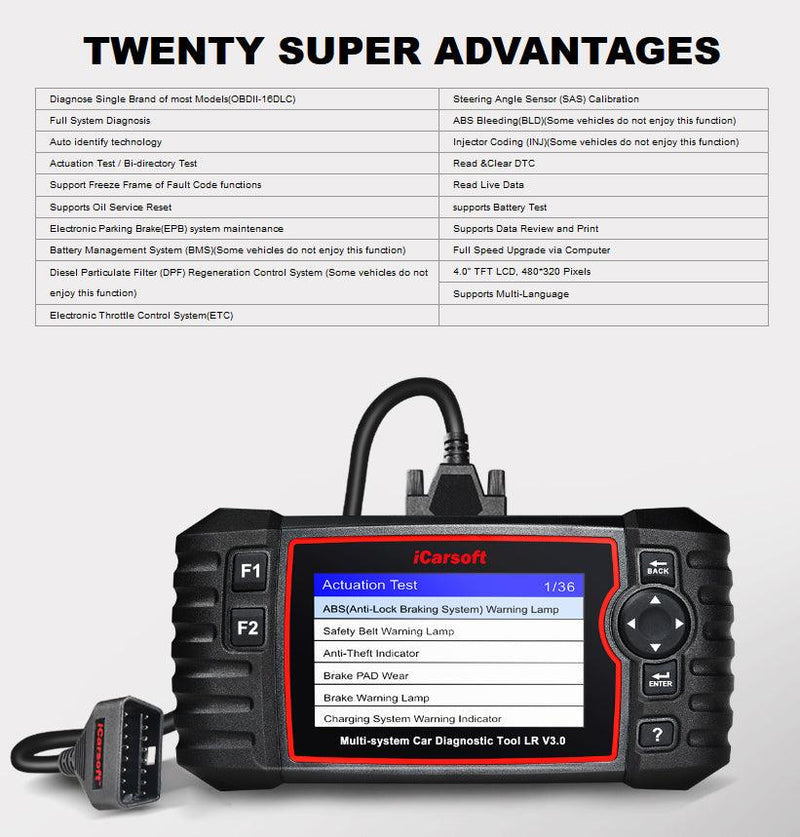

Key Features
- Dedicated Jaguar and Land Rover diagnostic software
- Coverage for supported vehicles approximately 1996–2025
- Full-system diagnostics
- Bi-directional active tests
- 36 service functions
- CAN-FD protocol support
- AutoVIN identification where supported
- 4-inch 480 × 320 TFT colour screen
- Physical-button navigation

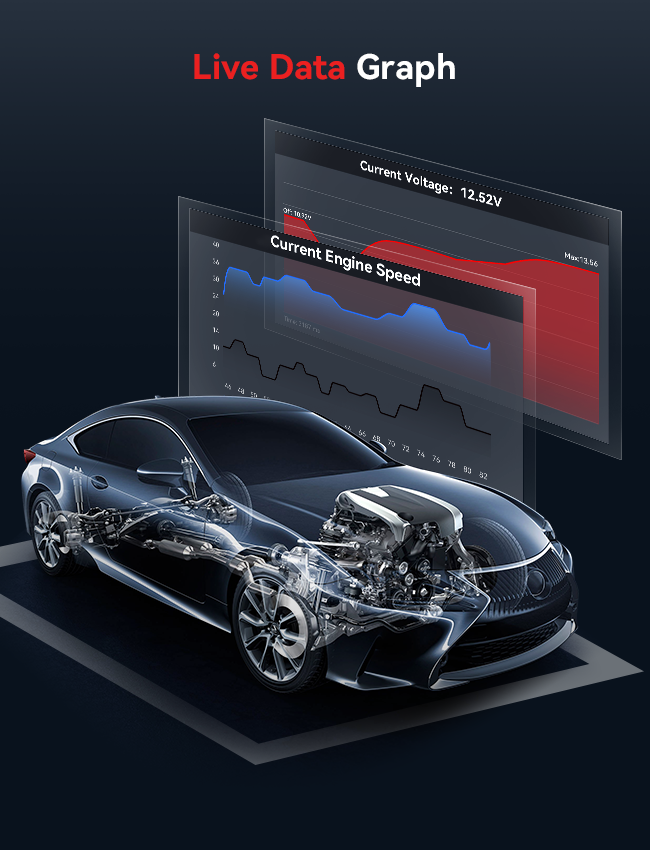

- Live data and freeze-frame information
- Diagnostic history and printable reports
- Lifetime free software updates
Full-System Diagnostics
Depending on the vehicle, the LR V3.0 can access engine, transmission, ABS, SRS airbags, electronic parking brake, air suspension, steering, body control, battery management, climate control, diesel emissions, instrument cluster and other available modules.
It can perform complete vehicle scans, read and clear system fault codes, display ECU information and monitor live values during fault finding or repair verification.

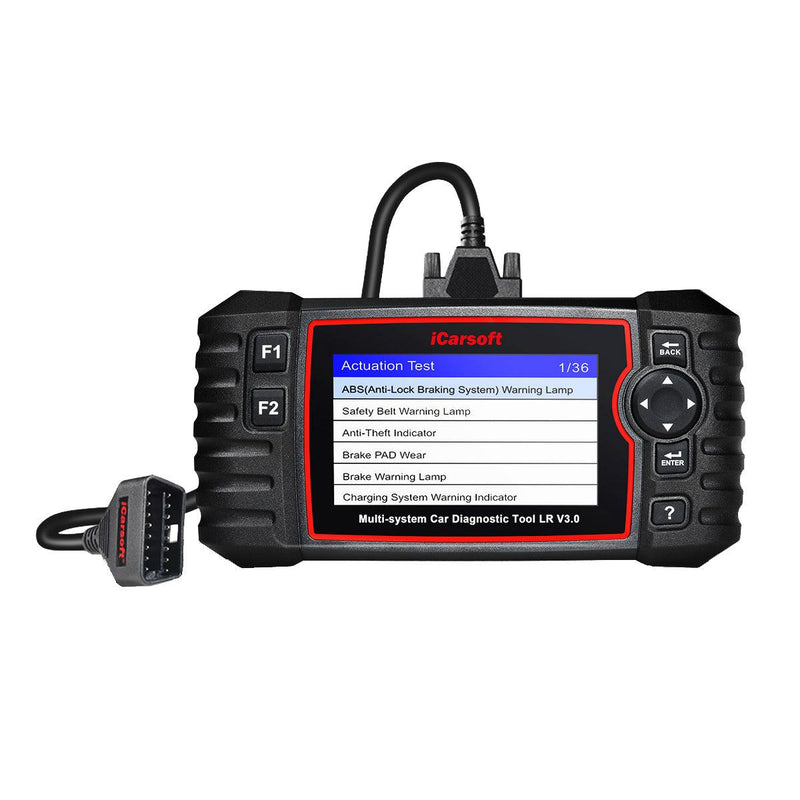

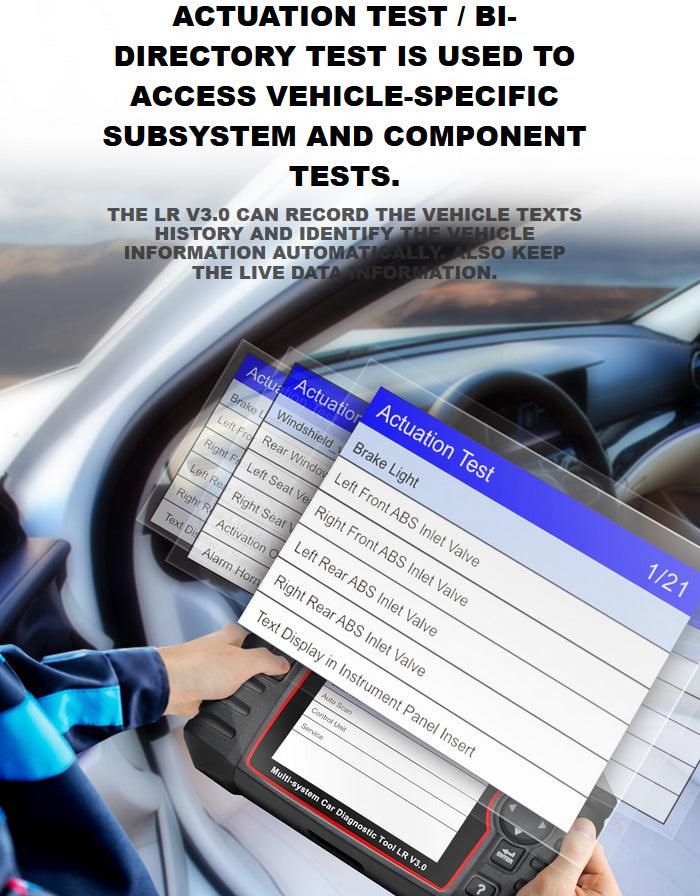

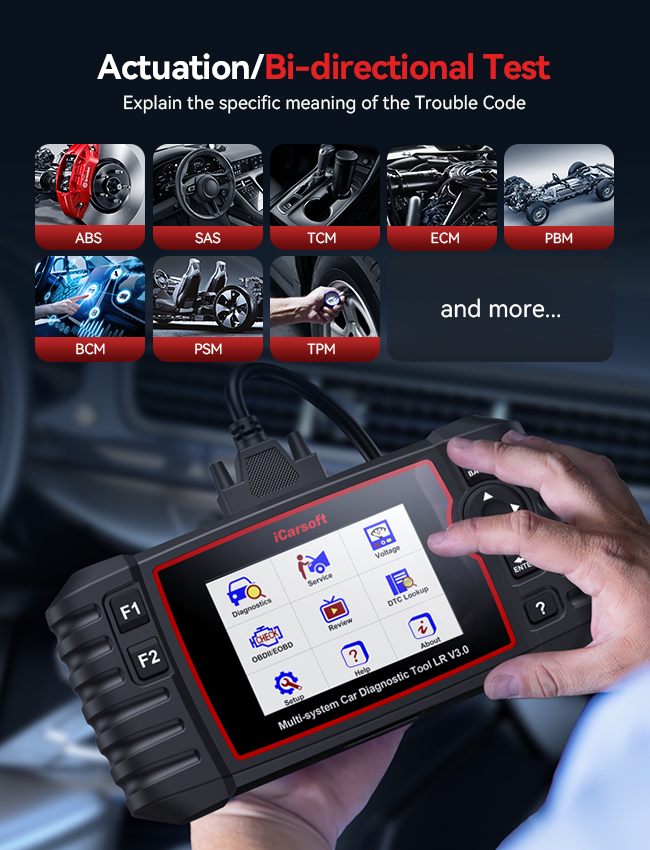

Bi-Directional Active Tests
Active testing allows the scanner to command supported components directly. Depending on the vehicle, this may include pumps, fans, suspension valves, lights, locks, windows, relays and other electronically controlled outputs.
This helps determine whether the fault lies with the component itself, its power supply, wiring or the controlling module.

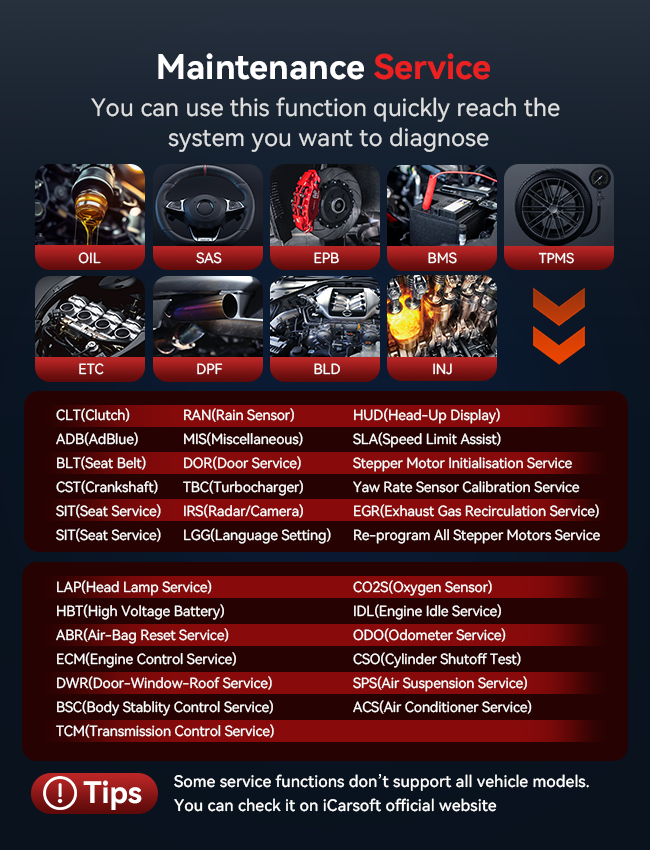

Service and Maintenance Functions

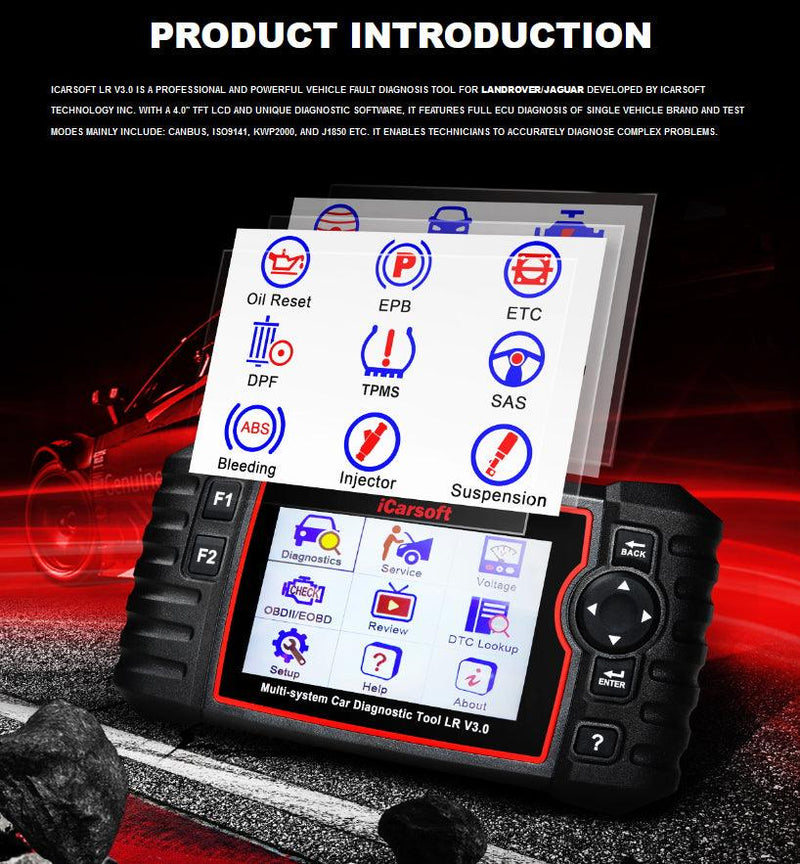

The LR V3.0 includes nine common service procedures plus 27 higher-level function categories. Common functions include oil reset, electronic parking brake service, steering-angle calibration, throttle relearn, DPF regeneration, injector coding, ABS bleeding, battery management and TPMS-related resets.
Additional functions cover selected suspension calibration, transmission adaptation, component relearn, airbag, lighting, window, seat and other JLR-specific service procedures.
Adaptations and Coding
The LR V3.0 supports selected adaptations, calibrations and coding-related procedures on compatible vehicles and modules.
Important: It is not a universal JLR programming or dealer online-coding tool. Function depth varies by model, year and control unit.

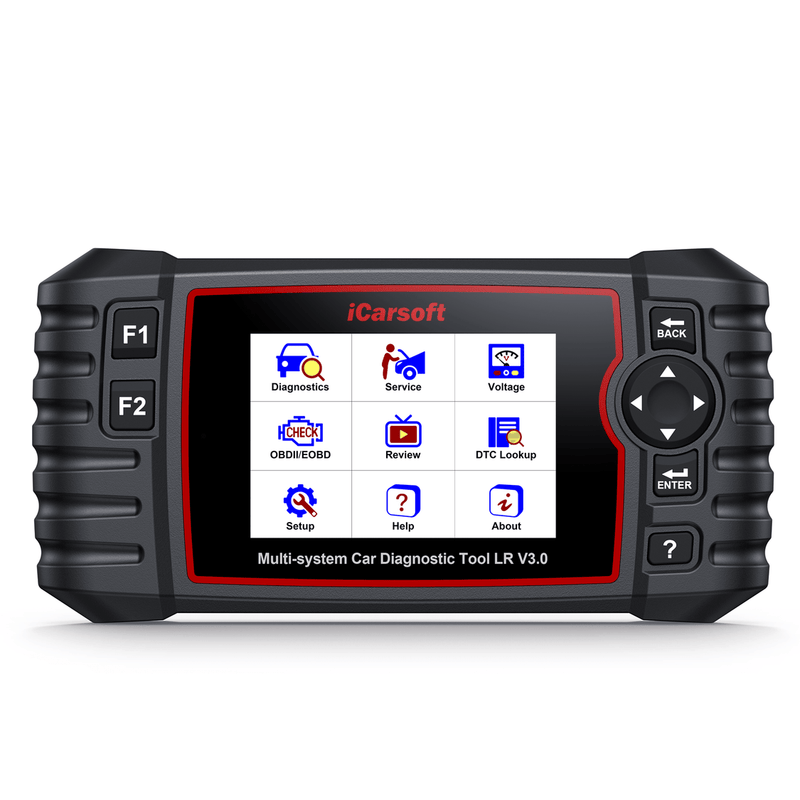

Hardware and Updates
The LR V3.0 uses a 4-inch colour display with physical buttons and is powered through the vehicle diagnostic socket. It measures approximately 206 × 104 × 33 mm and weighs about 350 grams.
Updates are installed through a Windows computer using the supplied TF card reader. Lifetime free software updates are included.
Vehicle Compatibility
The LR V3.0 is designed for supported Jaguar and Land Rover vehicles from approximately 1996 through 2025, including Range Rover models.
Check Vehicle and Function Coverage

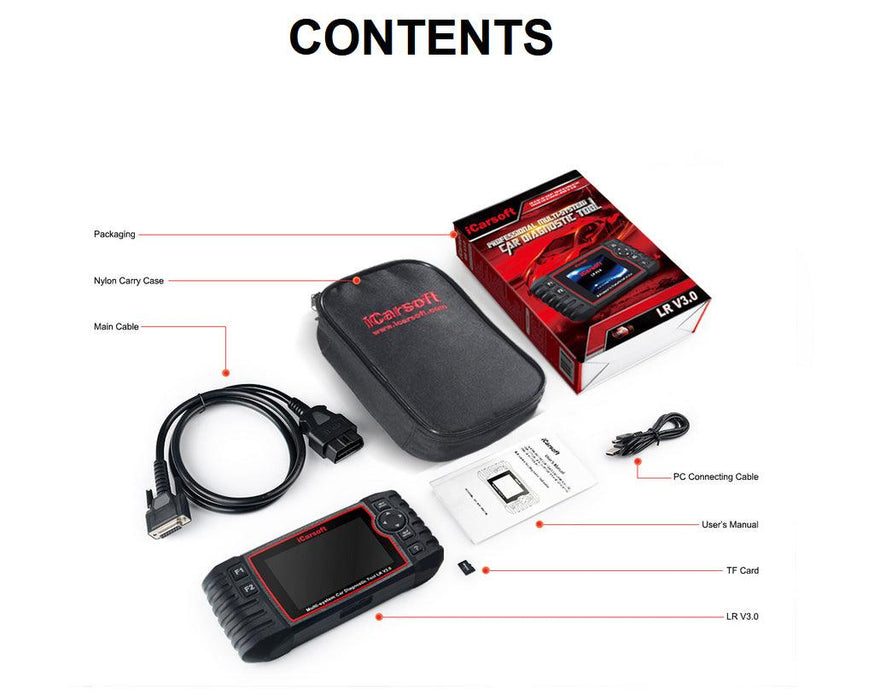

What’s in the Box
- iCarsoft LR V3.0 diagnostic tool
- 16-pin OBD2 main cable
- USB-C cable
- TF card reader
- Multi-language user manual
- Protective carry case
Is This the Right Scan Tool for You?
Choose the LR V3.0 if you mainly work on Jaguar and Land Rover vehicles and want full-system diagnostics, active tests and advanced service functions in a compact button-operated tool.
Choose the LR V2.0 for essential servicing at a lower price, or the LR V4.0 for touchscreen operation, WiFi updates and newer hardware.
